| No. | Sorts | Type | Parameters |
| 1 | System | Operating system | Linux |
| Online visitor | Supports 4 visitors viewing at the same time. | ||
| APP | O-KAM Pro | ||
| 2 | Collection | CPU | T23 |
| Memory | 512Mb | ||
| Image sensor | GC2083, 1/3CMOS | ||
| Minimum illumination | 0.8Lux/F1.4(Color mode),0.3Lux/F1.4（B&W mode） | ||
| Lens | Standard lens 14mm | ||
| Sensor performance | Supports automatic white balance, automatic gain control, and automatic backlight compensation. | ||
| PTZ | Horizontal 305 °, vertical 100 ° | ||
| Viewing angle | D100°diagonal | ||
| 3 | Video | Night Vision | Color night vision, dual light source, 6 dual color lights |
| Compression standard | H.264 /MJPEF/JPEG | ||
| Data rate | Main stream: 1296P/15fps, sub stream: 360P/15fps | ||
| IR control | When the IR night vision function is enabled, IR and ICR are automatically detected; when the IR night vision function is disabled, IR is off and ICR is fixed in the day vision mode. |
||
| Bit rate | CBR/VBR two rate control modes, with an output rate range of 128 to 4096kbps. | ||
| Image adjustment | Brightness, contrast, vertical, horizontal adjustable, OSD display. | ||
| 4 | Audio | Input | Built-in-38dB microphone |
| Output | Built-in 8Ω1W speaker | ||
| Sampling frequency/bit width | 8KHz/16bit | ||
| Compression standard/Bit Rate | G711A | ||
| 5 | AI | Humanoid detection | Humanoid detection, filtering invalid alarm events. |
| Area detection | Customize detection zones, only monitor areas that matter. | ||
| Intelligent notification sound | Set different notification sounds for different devices, so that you can accurately determine which device is triggered. | ||
| Intelligent alarm sound | Set different alarm sounds based on different scenarios. | ||
| More AI functions (under testing) | Pets, vehicles, packages, etc | ||
| 6 | Network | Wireless connection | Scan the device QR code to add/scan the APP QR code |
| Overseas Cat4 | European/Japanese/American/Australian versions | ||
| 7 | Key | Key 1 | On/Off |
| Reset key | Long press to restore factory settings | ||
| 8 | Storage | External TF card | Supports T-Flash cards (up to 256GB) |
| Cloud storage | Free cloud storage | ||
| 9 | Alarm | Sound light alarm | Sound and light alarm, 6 infrared lights+6 white lights, full-color night vision |
| Alarm detection | Supports PIR human movement detection, detection range 10 meters | ||
| 10 | Physical Indicators | Rated voltage | DC5V±5% |
| Power supply | Built in 12000mAh battery，3*21700 | ||
| Power consumption | Sleep standby 300uA, working: 400MA-1.5A max | ||
| Operating condition | Temperature: -10～55℃; Humidity: ＜90% | ||
| Weight | Gross weight: （Note: in kind prevail） | ||
| Size | （Note: in kind prevail） | ||
| What‘s in the box | Camera * 1, MICRO USB cable * 1, manual * 1, (solar panel * 1, solar panel bracket * 1 optional) |
Product
Contact Us
 |
+86 18124720400 |
|
+86 16675425442 |
 |
+86 18124720400 |
 |
Steve |
 |
steve@ankvision.com |
 |
4/F., No. 28, Hong Yuan Technology Park, Fucheng Shijing Rd., Guanlan St., Longhua New District, Shenzhen, Guangdong, China |
You are here：Home >> Product >> CCTV CAMERA >> Solar Camera

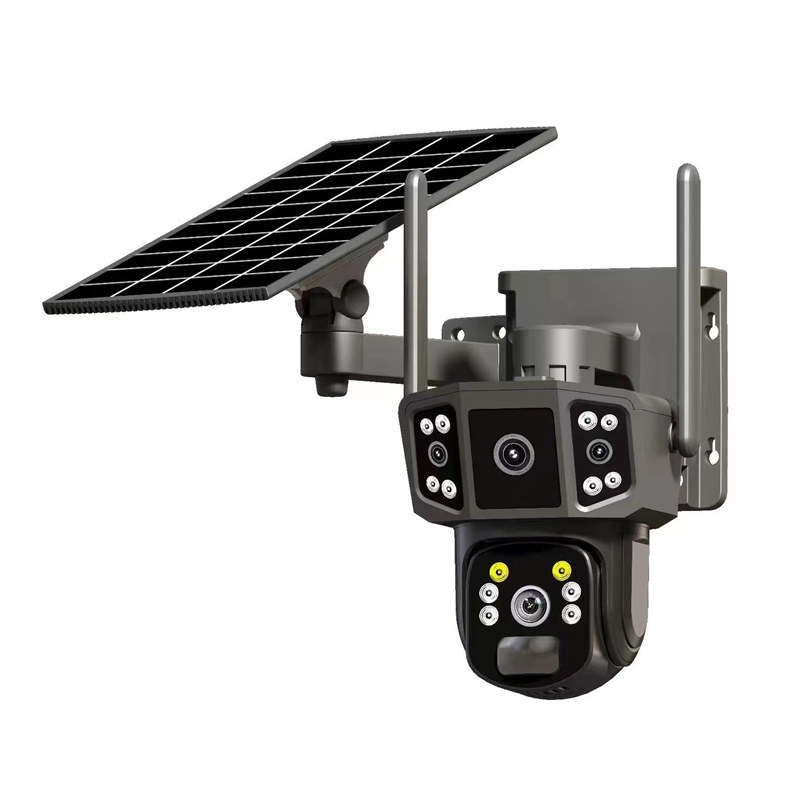

Solar Camera
PS07T3G
Product features：
✮Wireless connection
✮Remote active wake-up,two-way voice intercom
✮Quick start, start recording within 400ms
✮Intelligent detection of human movement, real-time alarm push
✮Built in 12000mAh battery, low battery reminder,21700×3
✮Low power system optimization
✮Free 3-day loop cloud storage to save alarm videos
✮Dual light source, full color day and night
✮Low power consumption, corded electric compatible design
